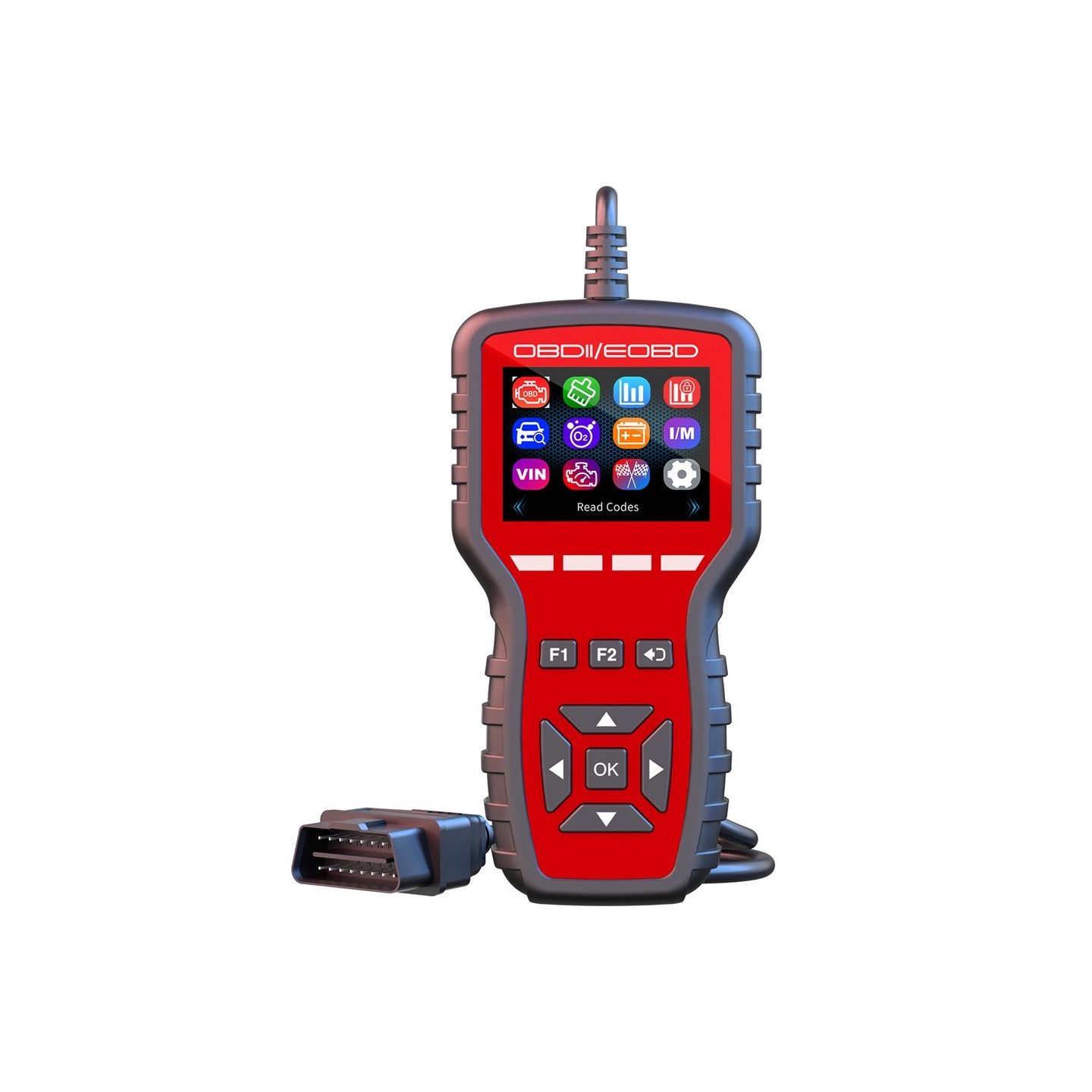

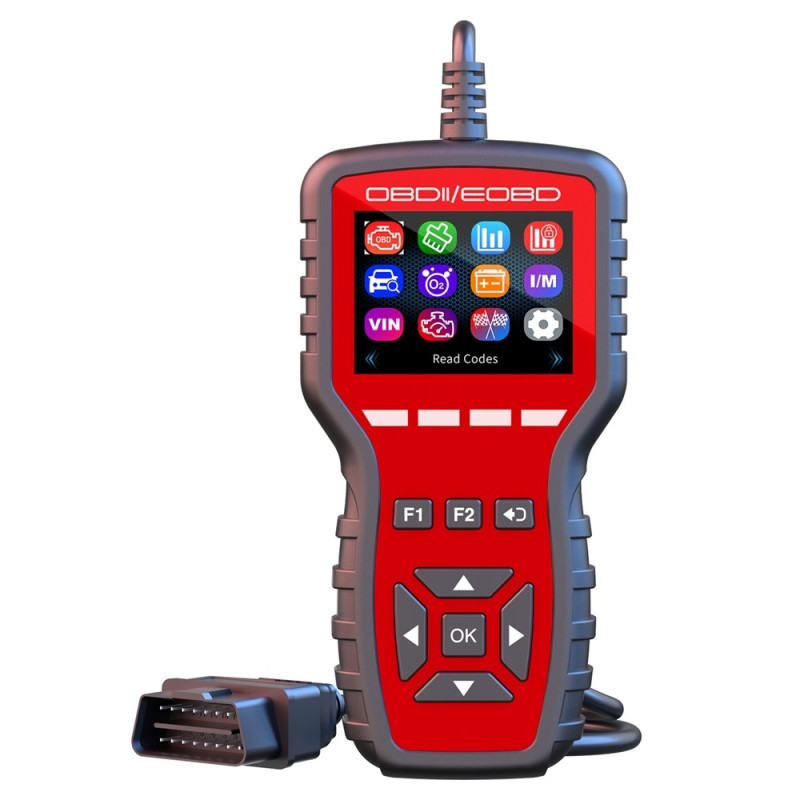

OBD2 Fault Code Reader / Diagnostic Tool – Over 40,000 Codes – Read & Clear

OBD2 Car Diagnostic Tool – Color Screen, Fault Code Reader & Eraser (Over 40,000 Codes)

【Professional OBDII Diagnostic Tool】Comprehensive diagnostic tool supporting OBDII/EOBD protocols for identifying engine faults, battery testing, and performance analysis across multiple vehicle systems.

【Database of Over 40,000 Fault Codes】Extensive fault code library providing instant interpretation of P/C/B/U codes, plus one-touch code clearing via dedicated F1 (Read) and F2 (Erase) buttons.

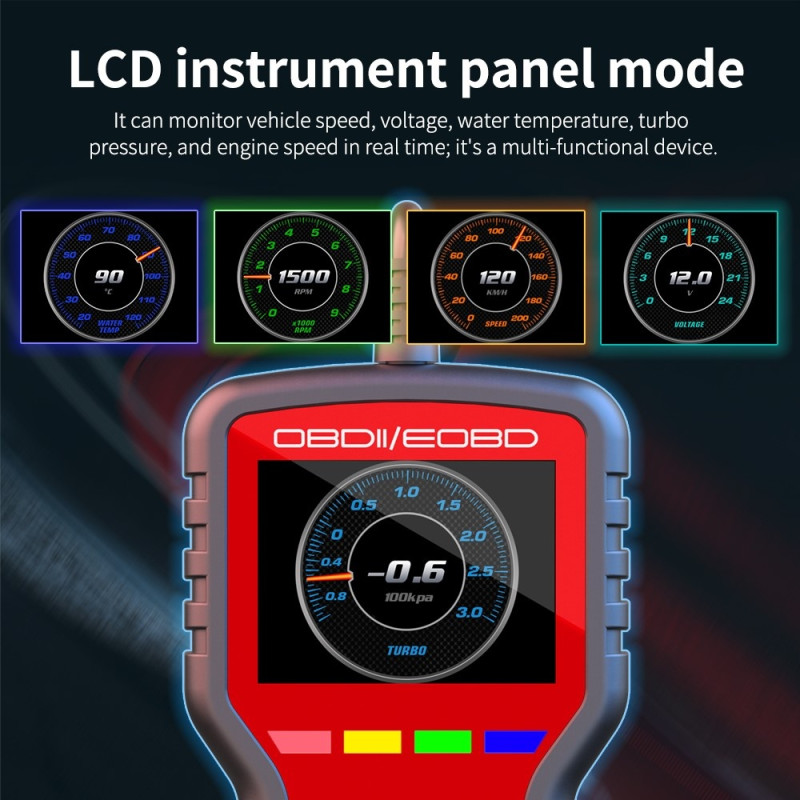

【Real-Time Data Stream Monitoring】Monitors vehicle data in real time—including engine load, coolant temperature, intake pressure, throttle position, MAF sensor readings, and RPM—for a comprehensive vehicle analysis.

【Smart Automatic Protocol Matching】Automatically identifies and connects to the vehicle's communication protocols (e.g., SAE J1850 VPW/PWM, ISO 9141-2, ISO 15765-4 CAN, and ISO 14230-4 KWP) without requiring manual settings.

【Multi-System Test Functions】Supports O2 sensor testing, I/M readiness status checks, VIN retrieval, and 12V battery voltage analysis with a detailed assessment of battery health. Specifications:

Product dimensions: 171 × 87 × 22 mm (6.72 in × 3.45 in × 0.99 in)

Cable length: 50 cm

Operating voltage: 9 ~ 16 V

Operating temperature: -20 ~ 60 ℃

Storage temperature: -20 ~ 60 ℃

Display: HD color LCD screen

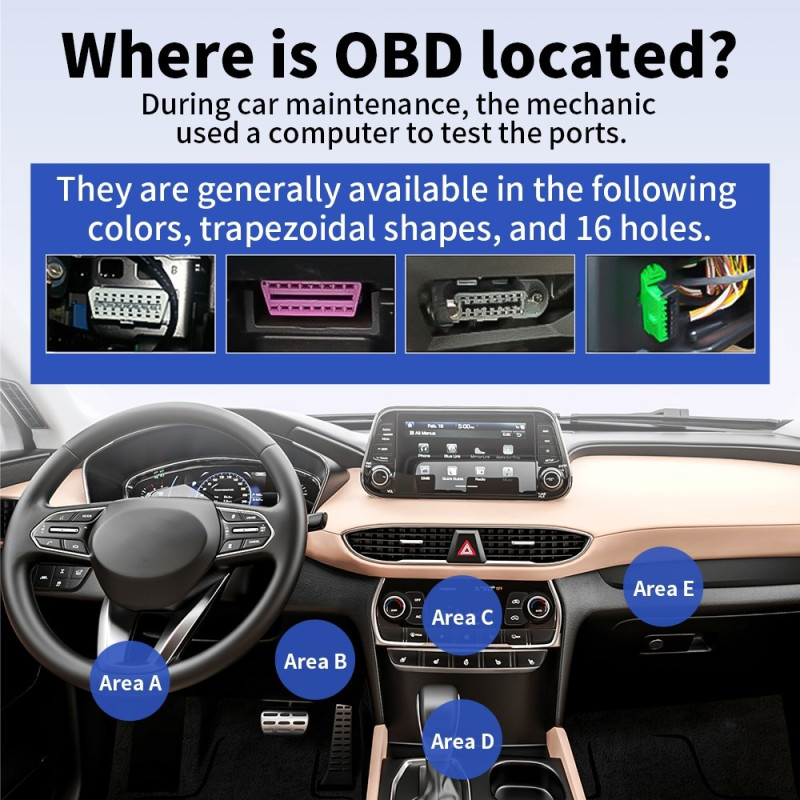

Interface: Universal 16-pin OBDII interface, USB-C port

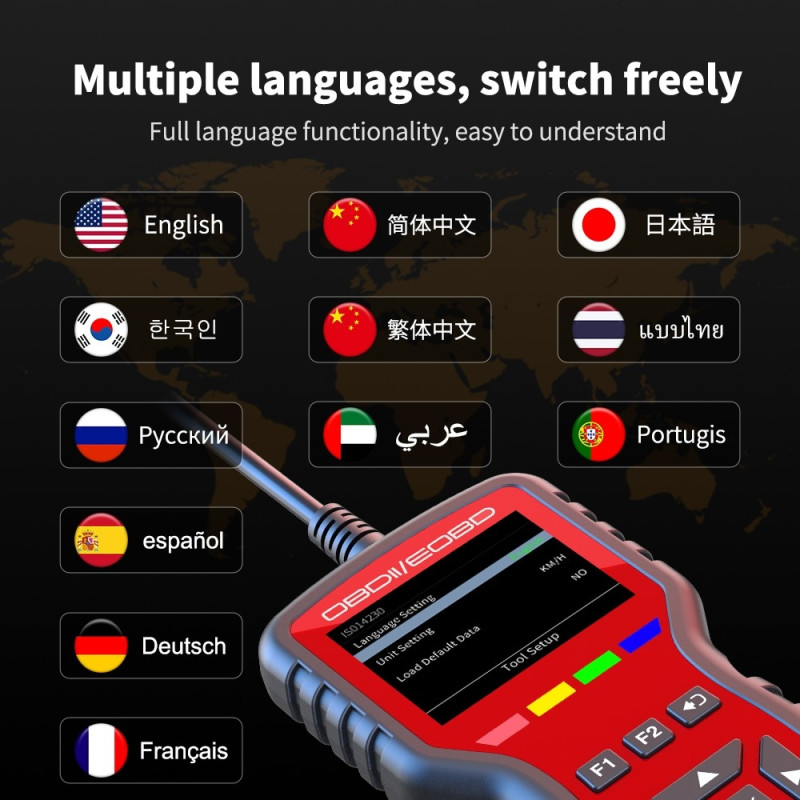

Language support: 12 languages ​​(English, Simplified Chinese, Japanese, Korean, Traditional Chinese, Thai, Russian, Arabic, Portuguese, Spanish, German, French)

Status indicators: Red (warning), yellow (in operation), green (fault code cleared), blue (connection successful)

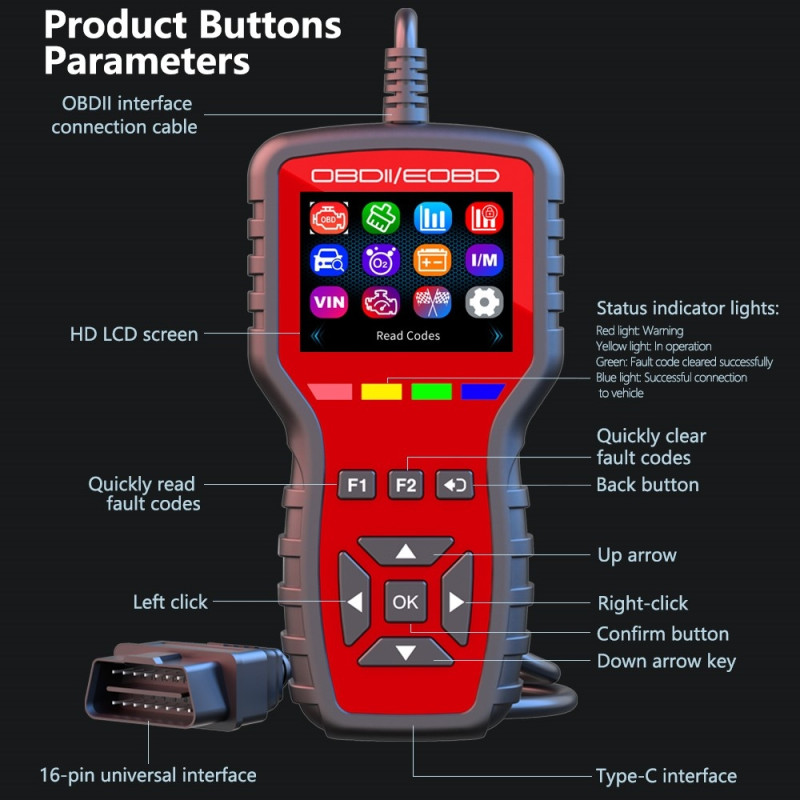

Physical buttons: F1 (quick read), F2 (quick clear), Back, OK, directional buttons

Protocol support: SAE J1850 VPW/PWM, ISO 9141-2, ISO 15765-4 CAN, ISO 14230-4 KWP

Fault code database: Over 40,000 entries

Package contents

1 x Car diagnostic tool

1 x User manual (English)
