Speedometer Head-Up Display (HUD) LCD OBD GPS – RPM, fuel consumption, and incline

Car HUD (Head-Up Display) with OBD and GPS, LCD speedometer, and displays for RPM, fuel consumption, and vehicle tilt

【Dual Data Acquisition via OBD and GPS】Advanced dual-mode system (OBD and GPS) provides comprehensive real-time vehicle diagnostics, including speed, RPM, fuel consumption, water temperature, and location data.

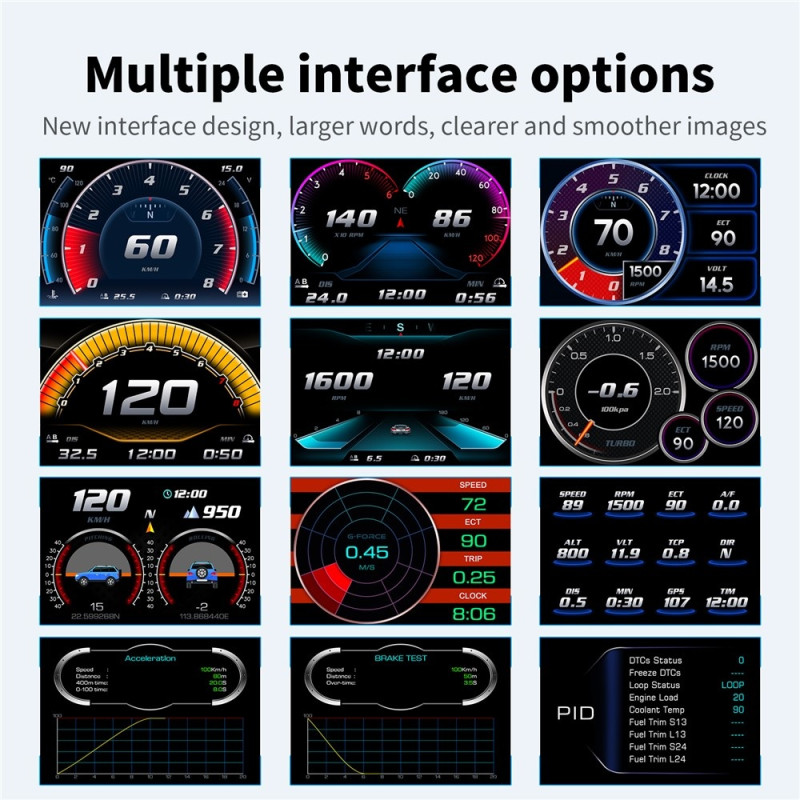

【Multifunctional LCD Display】Features 5 main interfaces and a dedicated inclinometer display, with customizable ambient lighting that reacts to engine RPM or vehicle speed.

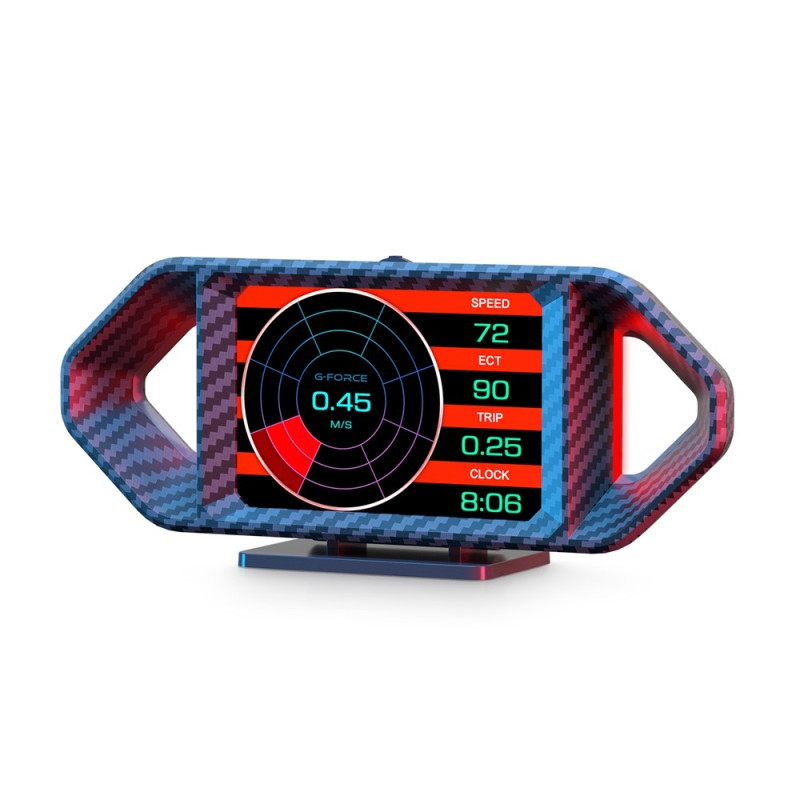

【Electronic Inclinometer and G-Force Meter】Built-in monitoring of pitch (-40° to +40°) and roll (-40° to +40°) angles, plus real-time G-force measurement during acceleration, braking, and cornering.

【360° Rotatable Split Mount】Flexible mounting system supporting both dashboard and overhead installation, featuring automatic brightness adjustment for optimal readability.

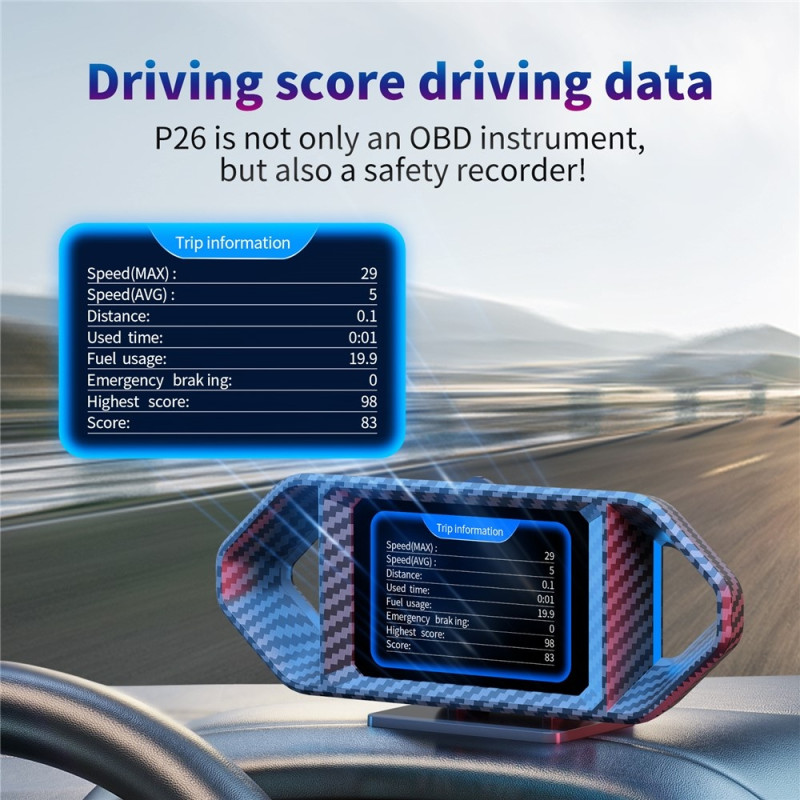

【Driving Score and Safety Alerts】Tracks driving behavior using a scoring system and provides various alerts: excessive speed, RPM, water temperature, voltage, and tilt angle. Specifications:

Dimensions: 159 mm x 68 mm x 36 mm (6.27 x 2.68 x 1.43 inches)

Material: Carbon fiber-look outer casing

Display type: LCD screen

Interface: USB-C, USB

Power supply: Via USB

Controls: Rotary/push knob

Mounting: 360° split mount

Chip: 9th-generation dual-core processor

Pitch angle range: -40° to +40°

Roll angle range: -40° to +40°

G-force measurement: Longitudinal and lateral

Vehicle logo options: 68 types

Interface options: 5 main interfaces + inclinometer

Ambient lighting modes: 4 types (linked to RPM, linked to speed, steady light, off)

Language support: 11 languages

OBD protocol: Standard PID data reading

GPS functions: Built-in GPS and BeiDou module

Alarm functions: High speed, RPM, water temperature, voltage, error code, tilt/incline

Package contents

1 x Main unit

1 x OBD cable (USB-C)

1 x USB cable (USB-C)

1 x User manual (English)

1 x Double-sided tape

1 x Base
