OBD2 Fault Code Reader / Diagnostic Scanner – Read & Clear Fault Codes, Real-Time Data Stream

OBD2 Car Diagnostic Tool – Color LCD Screen, 36,600-Code Database, Code Clearing & Real-Time Data

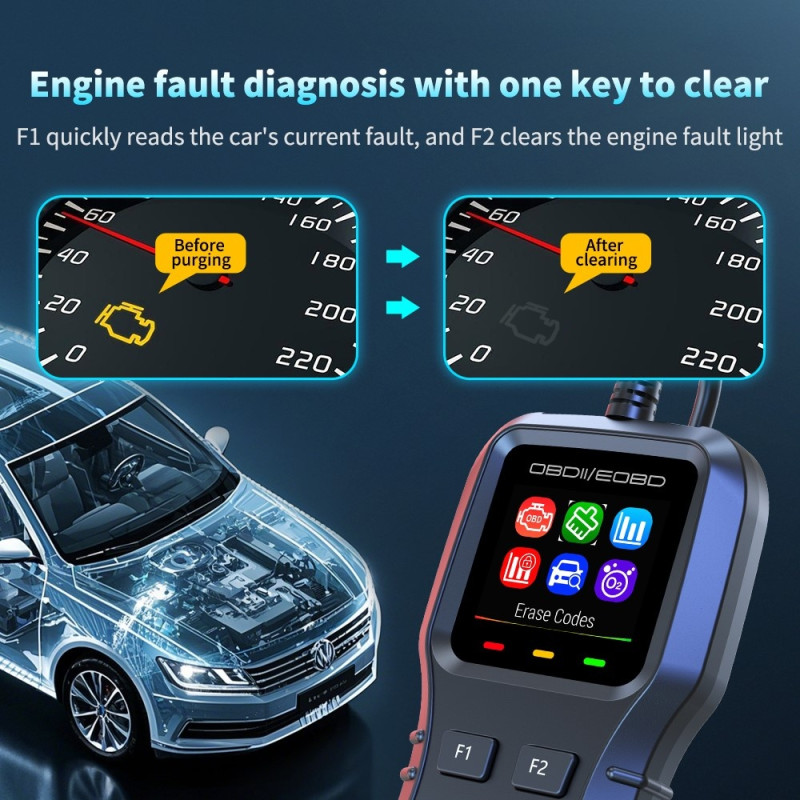

【Professional Engine Diagnostics】Supports comprehensive engine fault diagnostics with a database of 36,600 fault code definitions and real-time data monitoring for 10 key parameters.

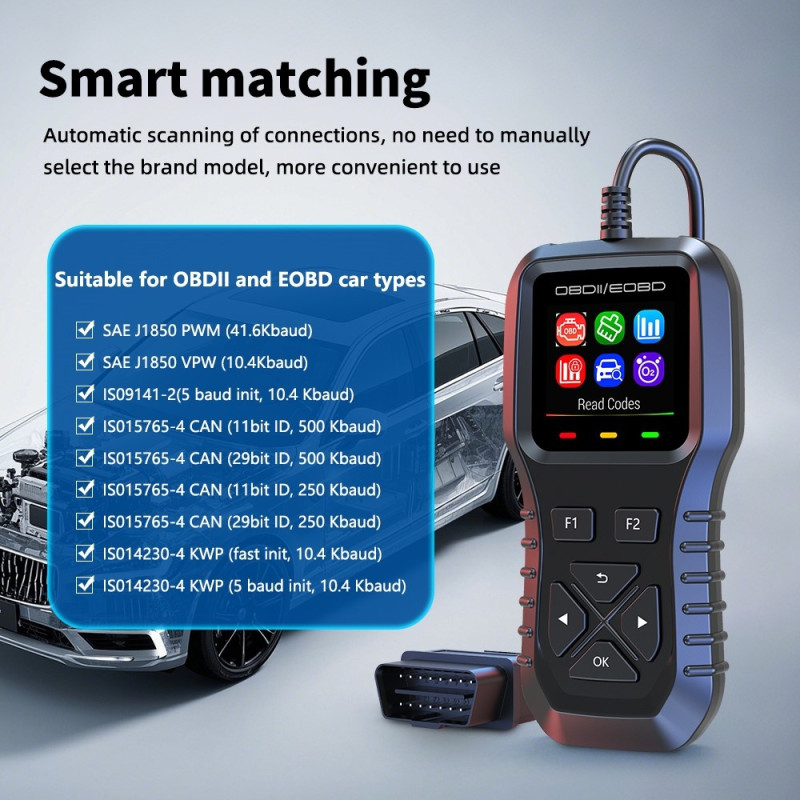

【Smart Protocol Matching】Automatically scans and matches communication protocols without manual vehicle selection; supports SAE J1850, ISO9141-2, ISO15765-4 CAN, and ISO14230-4 KWP protocols.

【Color LCD Screen】Equipped with a clear color LCD screen, an intuitive interface, and three-color status indicators (red for fault, yellow for operation, green for resolved/no faults).

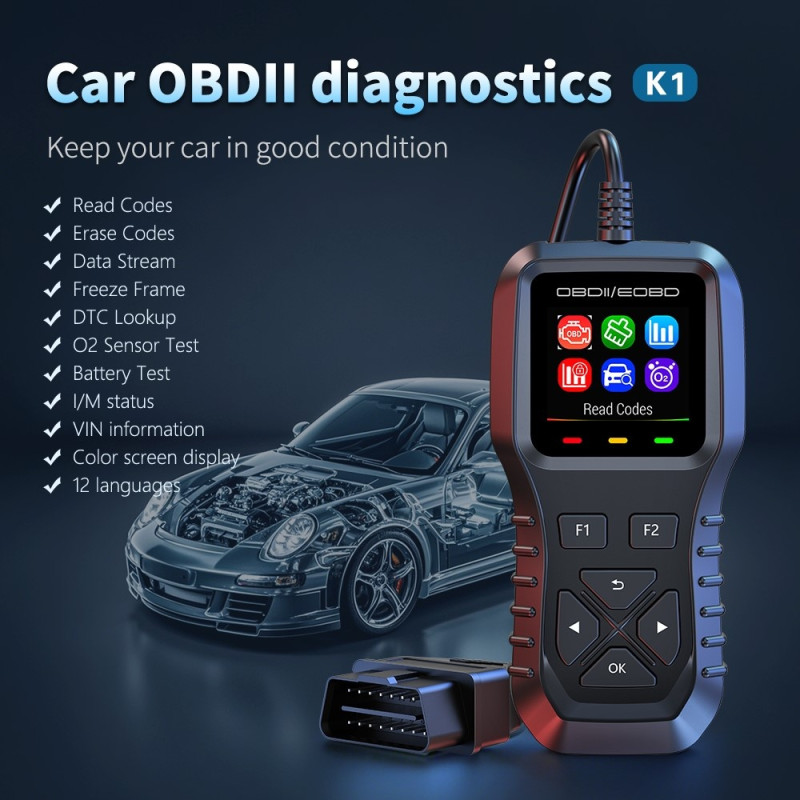

【Comprehensive Testing Functions】Includes O2 sensor testing, battery voltage monitoring, freeze frame data reading, and VIN retrieval for complete vehicle diagnostics.

【Plug-and-Play Functionality】Universal 16-pin OBDII cable enables instant connection to all compatible vehicles without additional settings or configuration. Specifications:

Product dimensions: 137 × 68 × 22 mm

Cable length: 50 cm

Operating voltage: 9–16 V

Operating temperature: -20°C to 60°C

Storage temperature: -20°C to 60°C

Interface type: Universal 16-pin OBDII interface

Charging port: USB-C port

Display: Color LCD screen

Supported protocols: SAE J1850 PWM/VPW, ISO9141-2, ISO15765-4 CAN, ISO14230-4 KWP

Fault code database: 36,600 engine fault codes

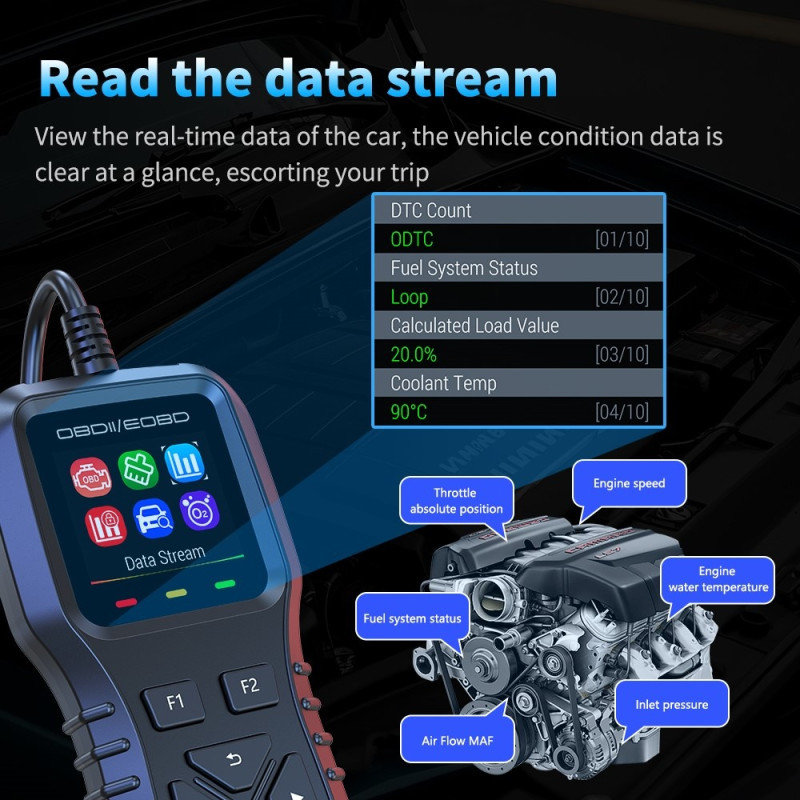

Data stream parameters: 10 real-time parameters

Language support: English, Simplified Chinese, Japanese, Korean, Traditional Chinese, Thai, Russian, Arabic, Spanish, German, Portuguese, Vietnamese

Package contents:

1 x OBD2 diagnostic tool

1 x User manual (English)
