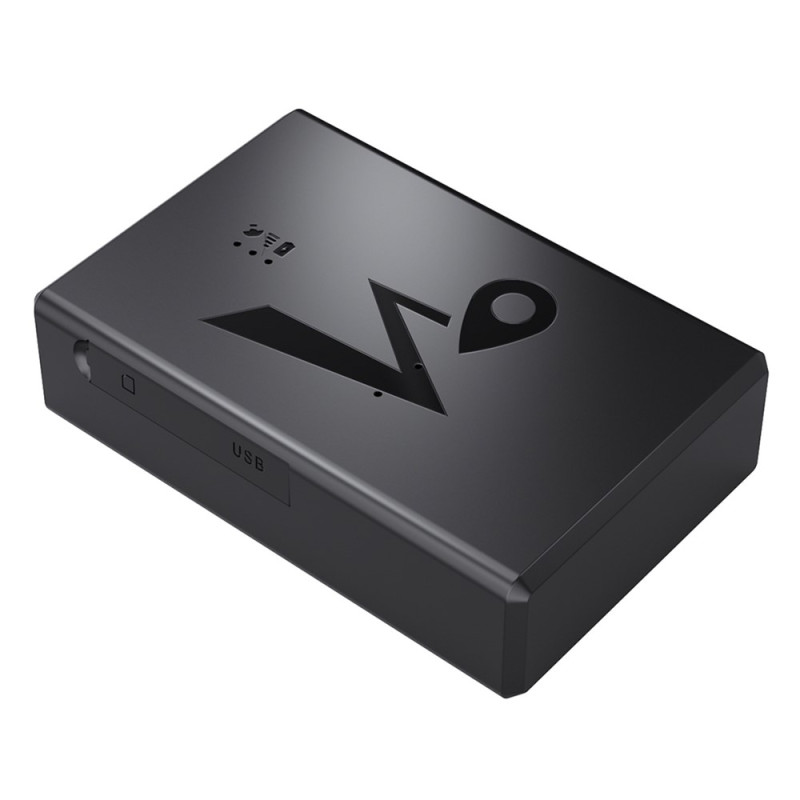

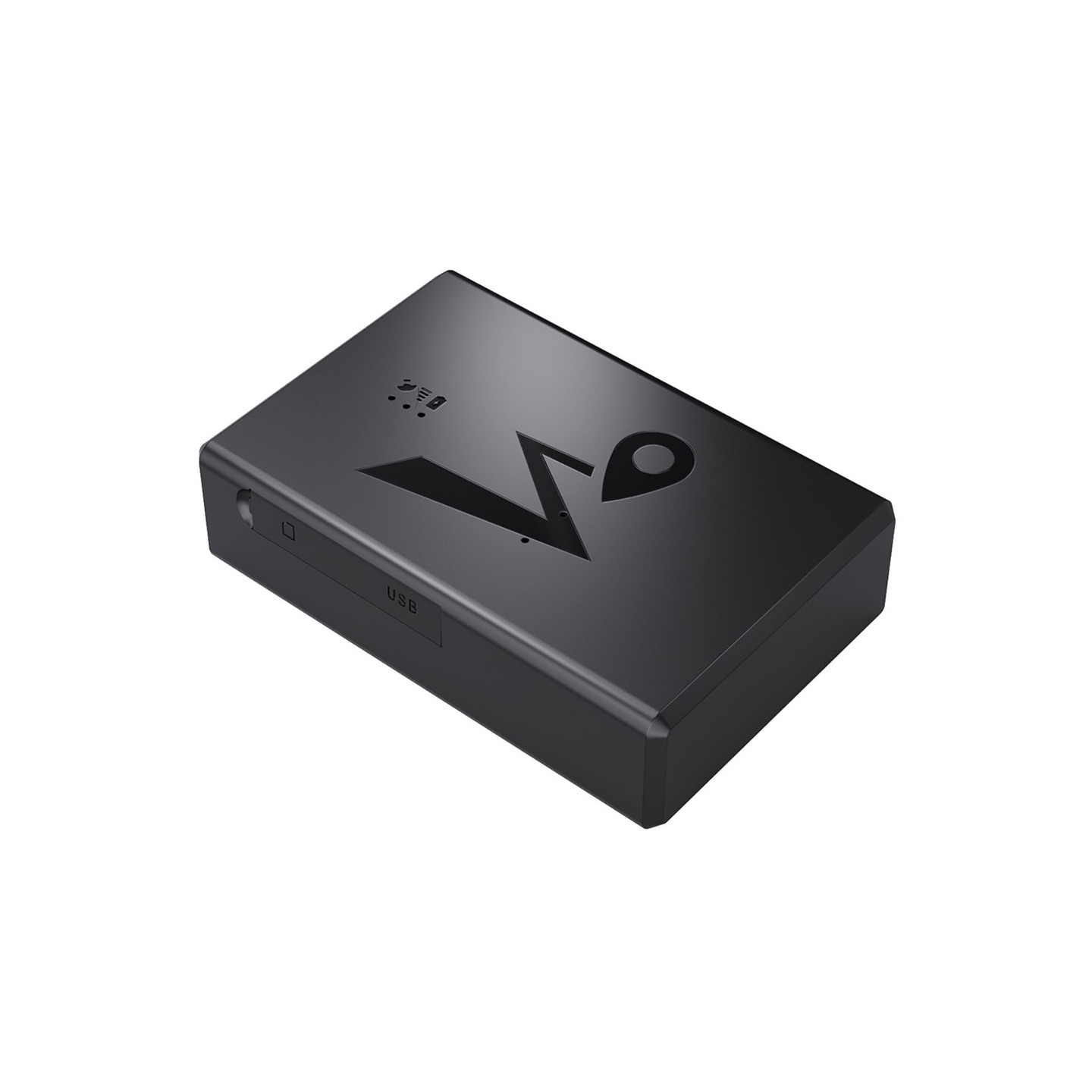

4G LTE GPS Tracker – 5500 mAh Battery, Magnetic Mount, Real-Time Vehicle Tracking

Q10 4G LTE GPS Tracker with 5500 mAh Battery and Magnetic Mount – Real-Time Vehicle Tracking (BDS)

【4G LTE Connectivity】Supports LTE-FDD, LTE-TDD, and GSM quad-band networks for real-time location tracking and remote monitoring with wide coverage.

【Magnetic Mounting】Built-in powerful magnets allow for secure, tool-free mounting on any metal surface; the device stays firmly in place for reliable tracking.

【Long Battery Life】Equipped with a high-capacity (5500 mAh) lithium-polymer battery, offering long standby time and optimized power management for extended tracking.

【Multi-Mode Positioning】Combines satellite positioning, assisted positioning, LBS, and Wi-Fi for accurate location tracking in both open areas and challenging environments.

【Smart Notifications】Supports multiple alarm types—including alerts for movement, vibration, speeding, low battery, geofencing, and disconnection (offline)—with push notifications via the platform, SMS, or phone calls. Specifications:

Model: Q10

Main chip: ASR1603

Positioning chip: AT6558R

Network: LTE-FDD B1/B3/B5/B8, LTE-TDD B34/B38/B39/B40/B41, GSM 900/1800

Operating voltage: 3.4–4.2 V DC

Charging voltage: 5 V DC

Device dimensions: 87 x 57 x 23 mm

PCBA dimensions: 47.5 x 24 x 4.8 mm

Indicators: Blue (network), green (positioning signal), red (charging)

Main interface: Type-C

Positioning antenna: Ceramic and FPC

GSM antenna: FPC

SIM card slot: Nano (push-to-eject), Dual SIM, compatible with 3GPP 31.101/31.102

UART: Supported

USB: Supported

Satellite positioning: Supported

G-sensor: Supported

Microphone: Supported

WiFi: Supported

Bluetooth compatibility: Not supported

Speaker: Not supported

Startup: Button press

Battery: 5500 mAh polymer battery

Real-time tracking: Supported

Route history playback: Supported

Geofence: Supported

Alarm notification: Supported

Battery level display: Supported

Tamper alarm: Not supported

SMS inquiry: Position inquiry, function settings

Vibration alarm: Supported

Assisted positioning: Supported

Package contents

1 x GPS tracker

1 x English manual User manual

1 x USB cable
