OBD2/EOBD+CAN Fault Code Reader – Diagnostics & Battery Test – 35,000+ Fault Codes (DTC)

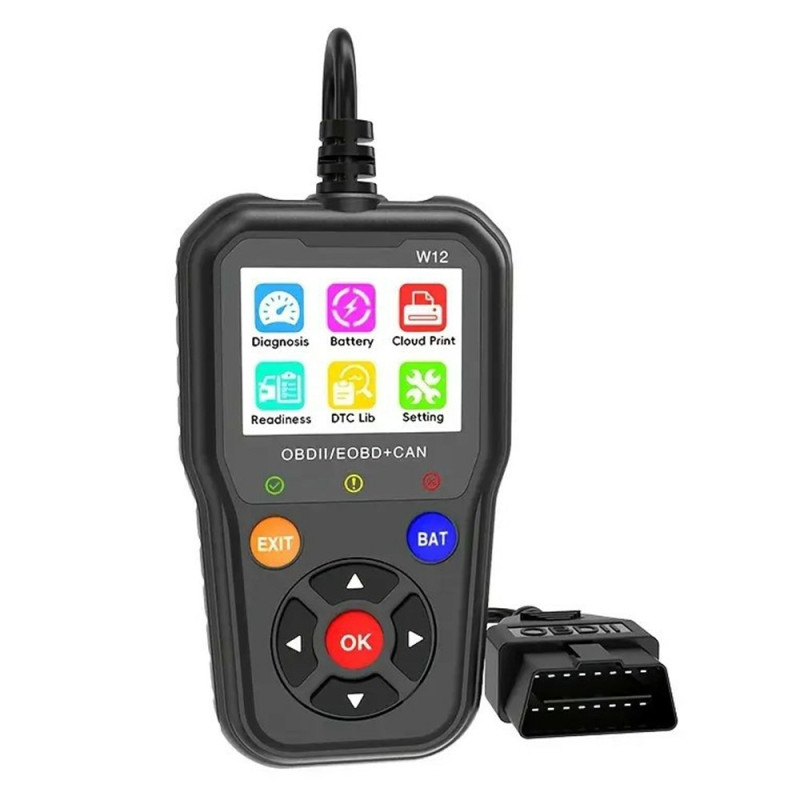

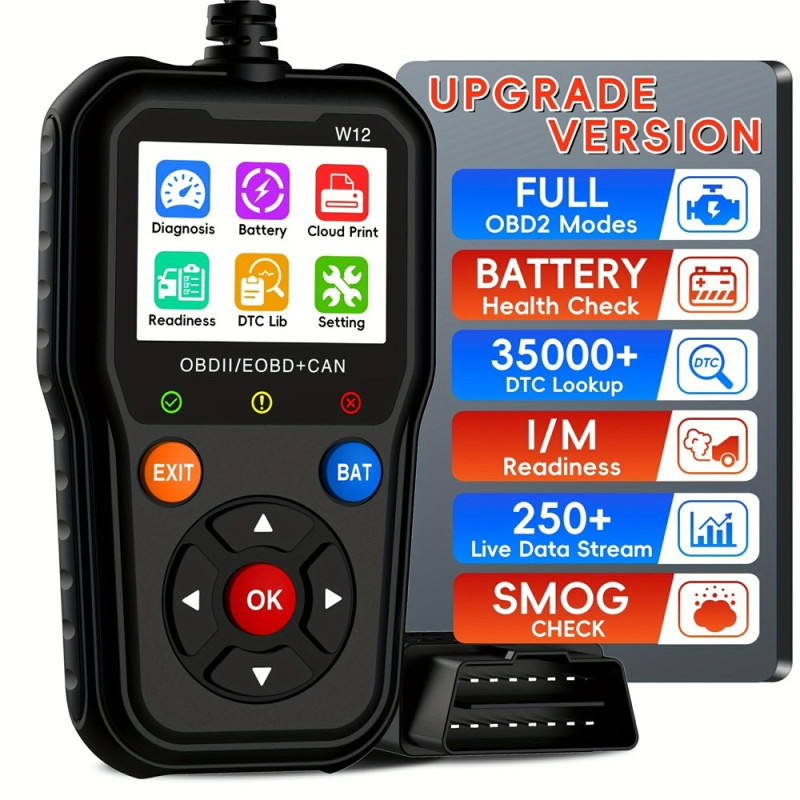

W12 OBD2 Scanner (OBDII/EOBD+CAN) – Diagnostic tool with battery test and a database of over 35,000 fault codes (DTCs)

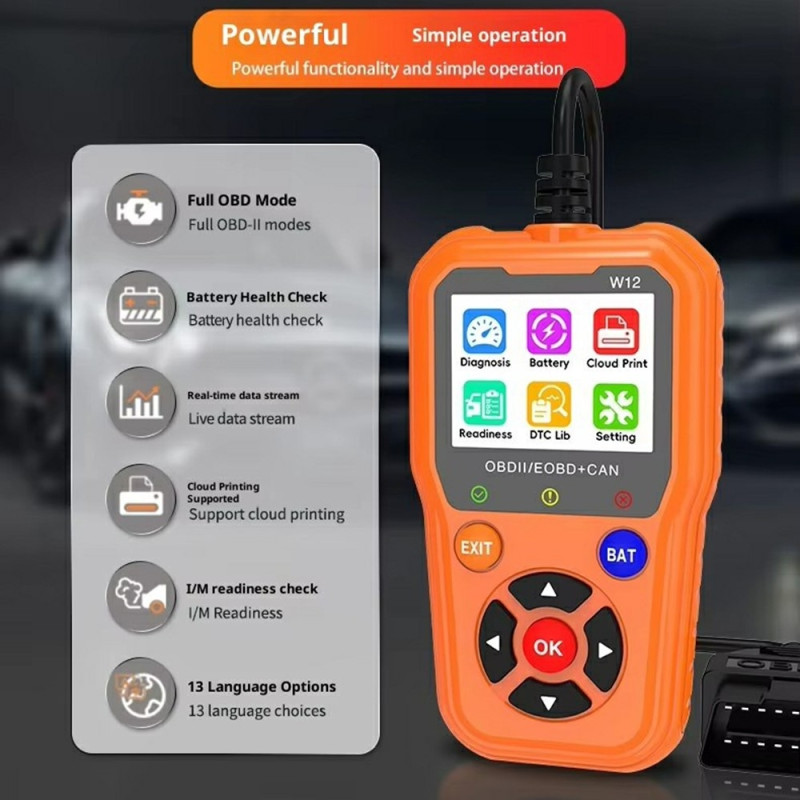

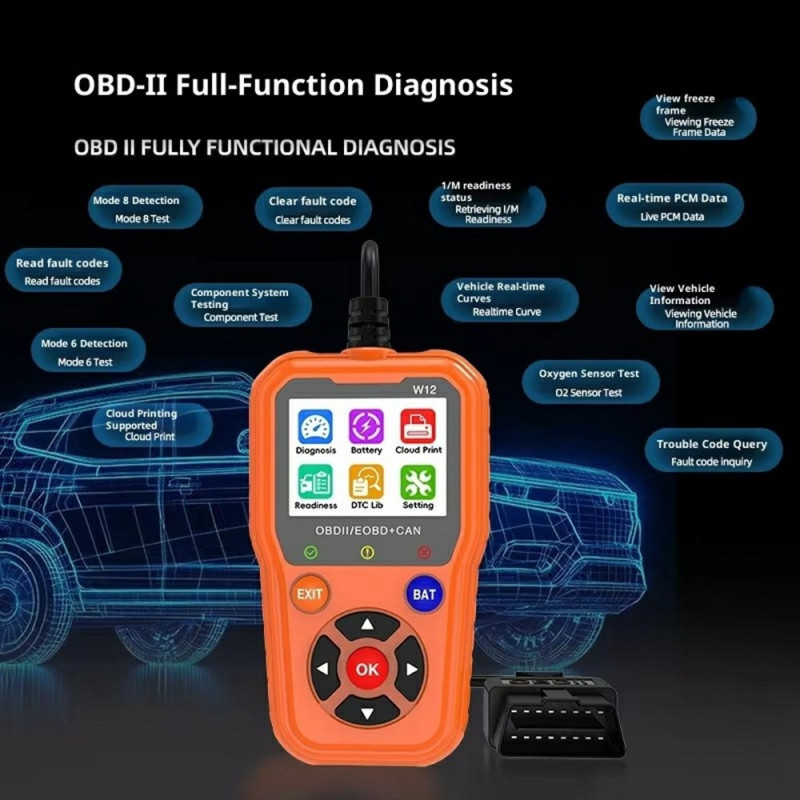

【Comprehensive OBDII Diagnostics】Read and clear engine fault codes, check I/M readiness status, view freeze frame data, and retrieve vehicle information for complete engine diagnostics.

【Built-in Battery Test】Quickly check battery voltage, monitor charge status, and evaluate battery health using the built-in battery analysis function—no extra equipment required.

【Real-time Data Stream】Monitor key parameters such as engine RPM, speed, coolant temperature, fuel system status, throttle position, and oxygen sensor data, with graphical display.

【Database of Over 35,000 Fault Codes (DTCs)】The built-in library displays clear fault code definitions directly on the screen, eliminating the need for online searches during diagnostics.

【Portable and Ergonomic Design】Features a 2.4-inch IPS display, an intuitive menu, and an ergonomic design. "Plug-and-play" functionality—requires neither batteries nor an app for quick connection.

Specifications:

Screen size: 2.4-inch IPS

Screen features: HD display, 99% sRGB color gamut, 178° viewing angle, full view / full color range / high brightness

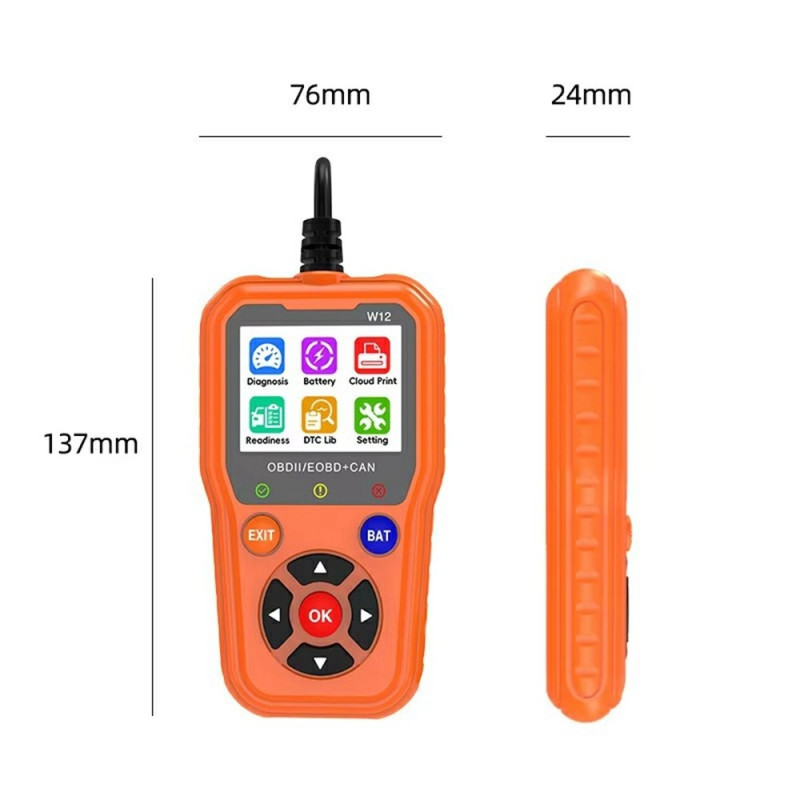

Dimensions: 137 mm x 76 mm x 24 mm

Connection type: OBD-II 16-pin DLC

Supported protocols: OBDII/EOBD+CAN

Fault code library: Over 35,000 DTCs

Live data parameters: Over 250

Language options: 13

Compatible models: Compatible with Jetta VI (2011–2018) and later models, as well as a wide range of passenger cars, SUVs, minivans, and light trucks.

Package includes:

1 x Car diagnostic tool

1 x User manual (English)
