OBD2 fault code reader / diagnostic tool – full-featured OBDII scanner with support for 13 languages

YM519 OBD2 Fault Code Reader and Engine Diagnostic Tool – Full OBDII scanning support and 13 languages

【Broad Vehicle Compatibility】Compatible with 99% of all OBDII-compliant vehicles, including US cars from 1996 onwards, European vehicles from 2003 onwards, and all 12V cars supporting standard OBDII protocols.

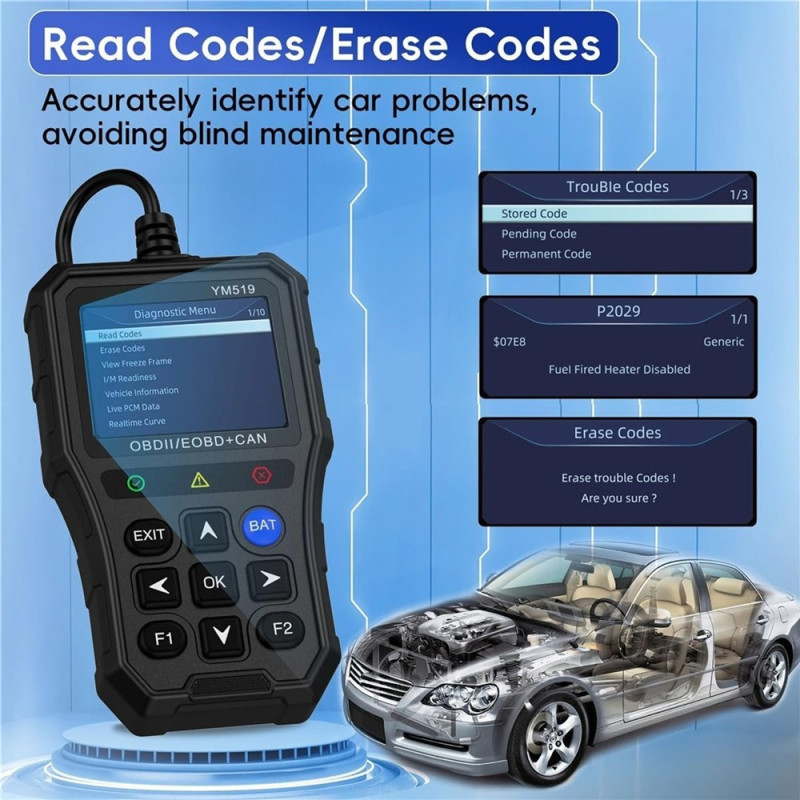

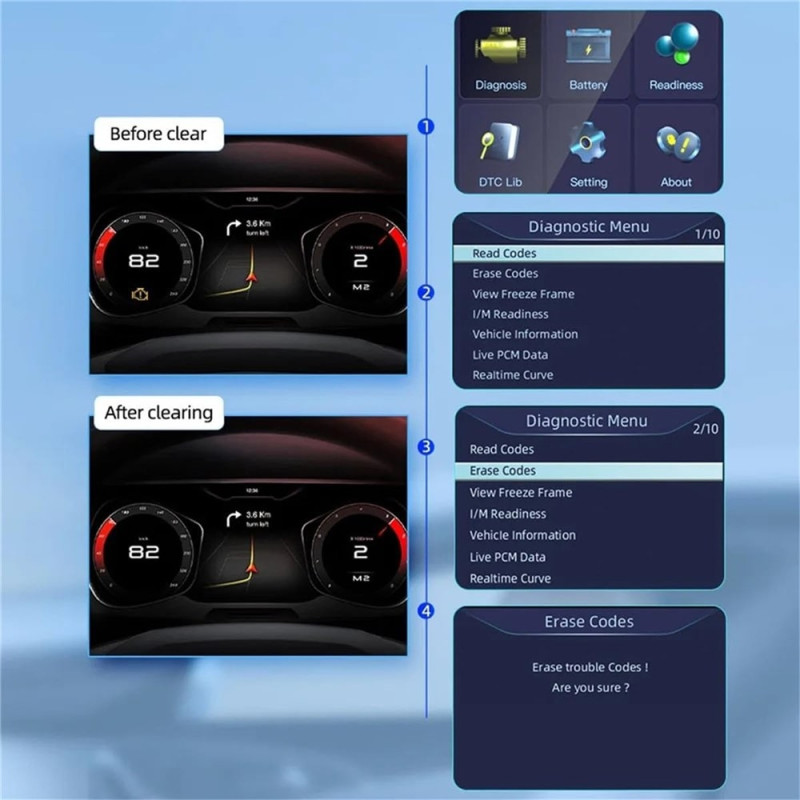

【Fast Engine Diagnostics】Instantly reads fault codes, displays on-screen descriptions, identifies root causes, clears engine fault codes, and turns off warning lights (MIL) for efficient troubleshooting.

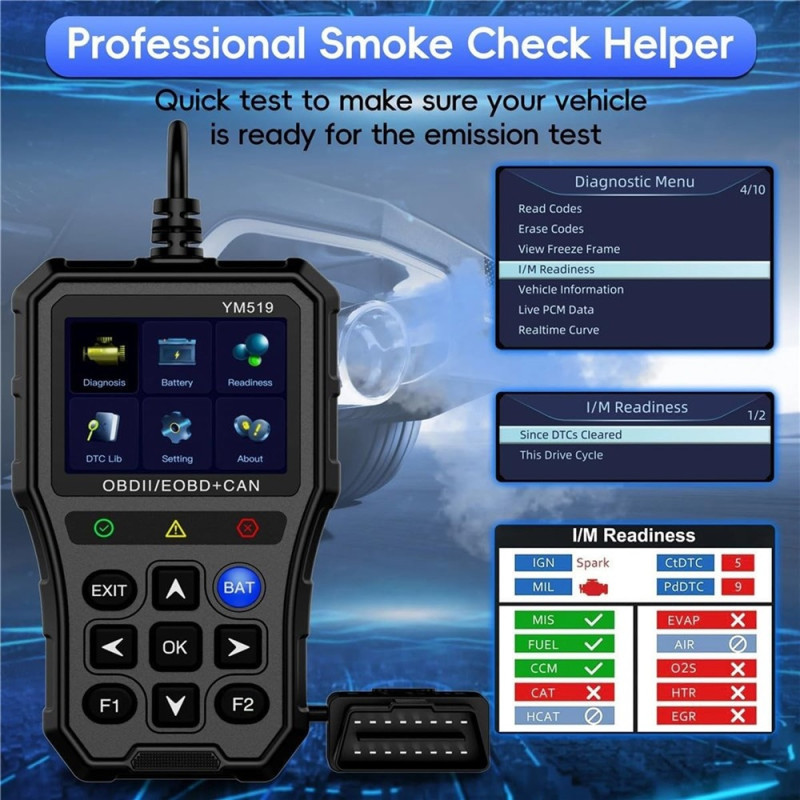

【Full OBDII Mode Support】Professional scanner with comprehensive OBD2 functions, including component tests (Mode 6), actuator tests (Mode 8), freeze frame data, I/M readiness checks, and real-time PCM data streaming.

【Support for 13 Languages】Multilingual interface supporting Chinese, English, Korean, Japanese, Russian, Polish, Portuguese, Finnish, Italian, French, Spanish, Dutch, and German – for worldwide use, whether in the workshop or during roadside emergencies.

【Fast and Reliable Operation】Delivers highly accurate and rapid results in just seconds for a quick assessment of the vehicle's condition. Features an intuitive interface with GPU Turbo acceleration, a protective TPU housing, silicone buttons, and three bright LED indicators.

Specifications:

Protocol support: 9 standard OBDII/EOBD protocols

Communication protocols: SAE J1850 PWM (41.6 Kbaud), SAE J1850 VPW (10.4 Kbaud), ISO9141-2 (5-baud initialization), ISO14230-4 KWP (5-baud/10.4 Kbaud, fast init 10.4 Kbaud), ISO15765-4 CAN (11-bit/29-bit ID at 500/250 Kbaud)

DTC database: Over 35,000 entries covering FSM, CCM, MIS, MIL, EVAP, O2S, HCAT, and CAT systems

Display: Color LCD screen

Connection: 16-pin OBD-II diagnostic port

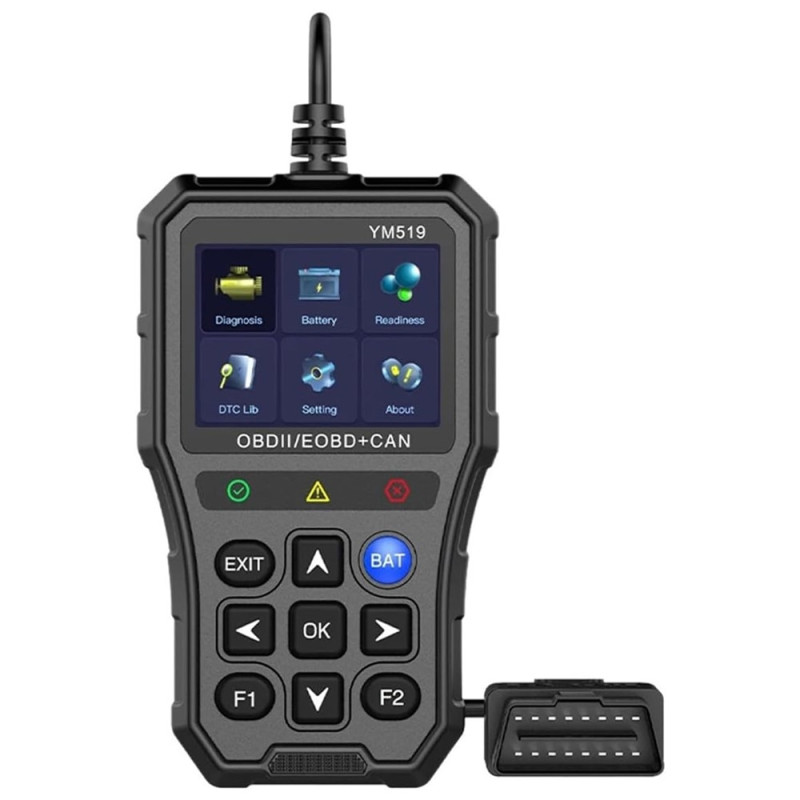

Design: Handheld unit with physical buttons

Status indicators: Three LEDs (green for OK, yellow for warning, red for fault)

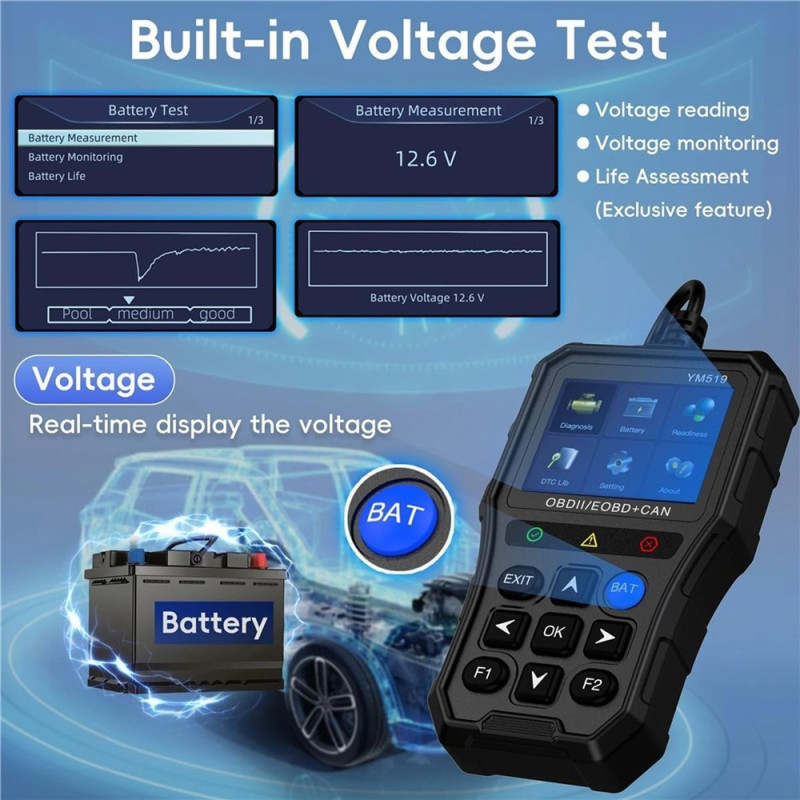

Voltage test: Real-time battery voltage monitoring and battery health assessment via dedicated BAT button

Compatibility: 99% of OBDII-compliant vehicles (US from 1996 onwards, EU from 2003 onwards, 12V cars)

Language support: 13 built-in languages

Functions: Read fault codes, clear fault codes, Freeze Frame data, I/M readiness, vehicle information, real-time data stream, real-time graphing, Mode 6/8 tests, DTC lookup, starter and charging system test, O2 sensor test, component test

Package contents

1 x Car diagnostic tool

1 x User manual (English)
