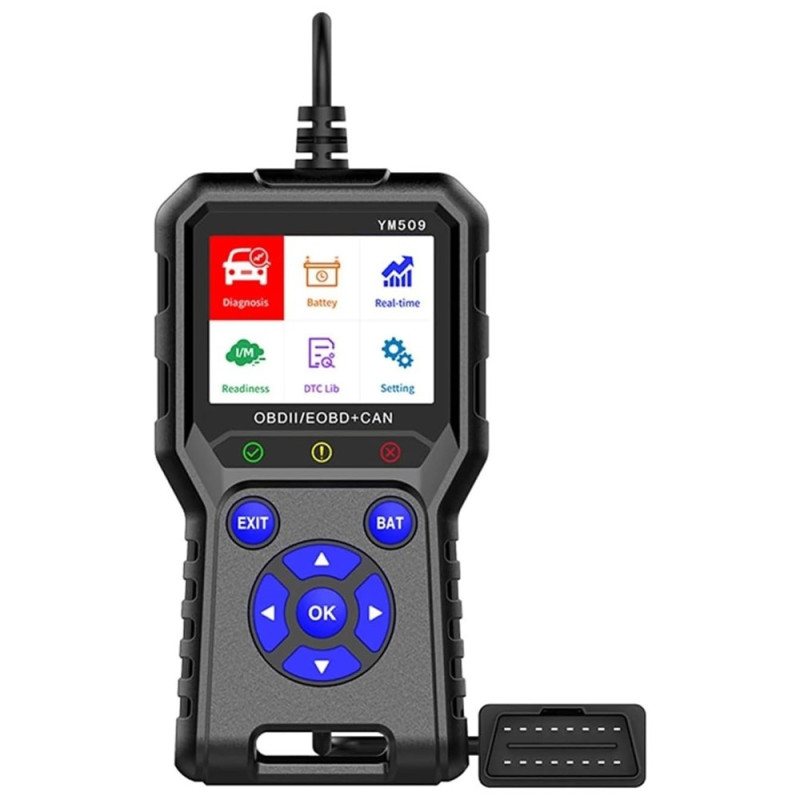

OBD2 Car Fault Code Scanner – Professional CAN OBDII/EOBD Tool

YM509 OBD2 Scanner and Fault Code Reader – Professional Tool for CAN OBDII/EOBD

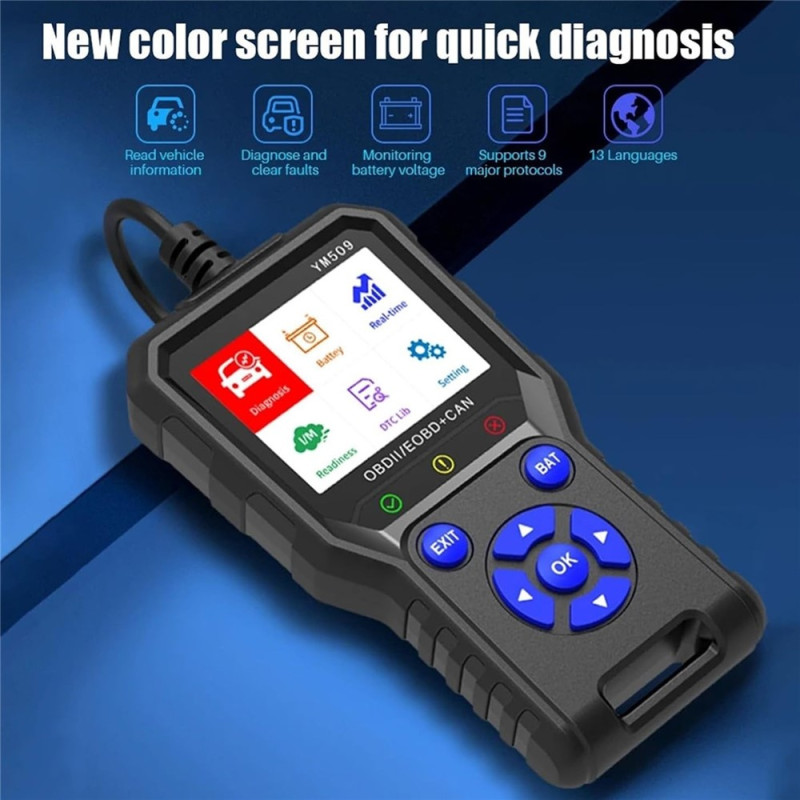

【Advanced User Interface】Next-generation user interface featuring a bottom-aligned layout, customizable themes, and GPU Turbo technology for faster response and display.

【Comprehensive Diagnostic Functions】Reads and clears engine fault codes; supports freeze frame data, I/M readiness checks, Mode 6 tests, component tests, and O2 sensor tests.

【Real-Time Data Streaming】Monitor over 250 parameters with real-time graphing for a thorough analysis of the vehicle's condition.

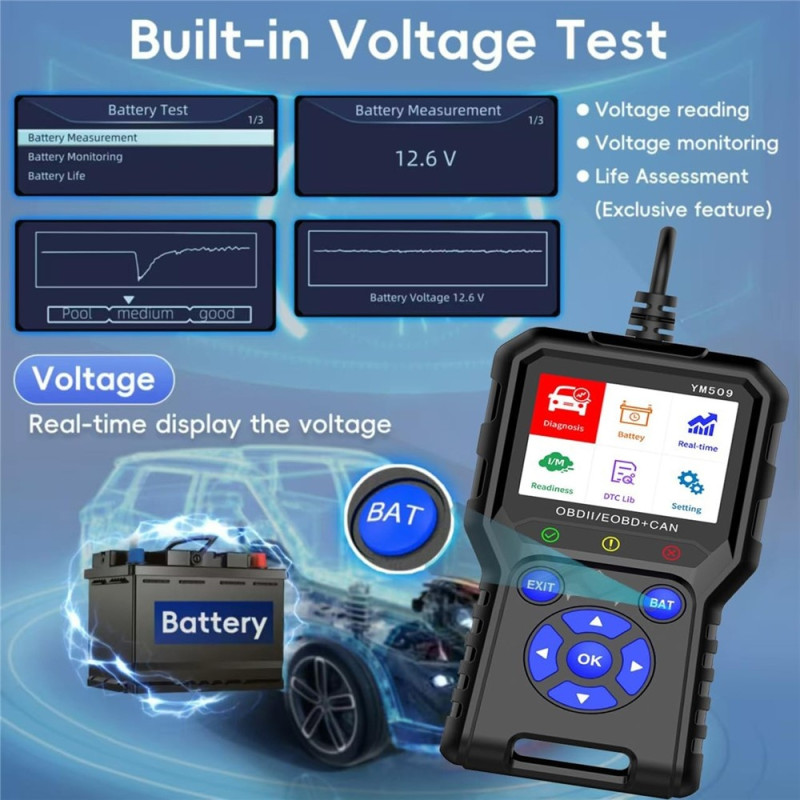

【Battery Health Analysis】Unique feature for monitoring vehicle battery voltage in real-time and assessing battery health.

【Multi-Language and Multi-Protocol Support】Supports 13 languages ​​and 9 OBD protocols for broad compatibility with vehicles across different regions.

Specifications:

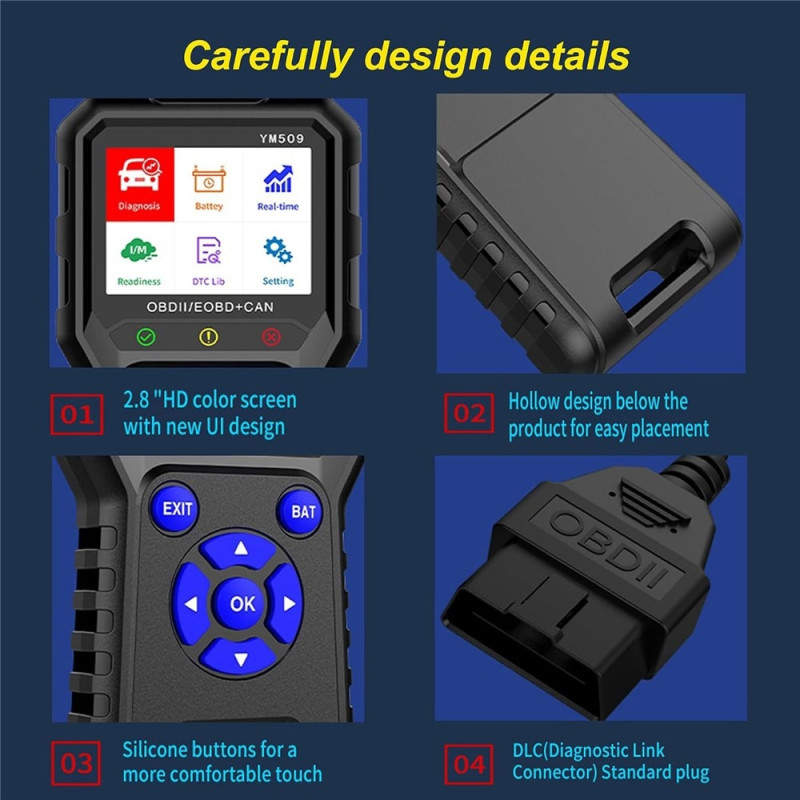

Screen size: 2.8-inch HD color display

Interface: Standard DLC connector (OBD-II)

Buttons: Silicone buttons

LED indicators: 3 colors (green/yellow/red)

Language support: 13 languages

Protocol support: 9 protocols

DTC library capacity: Over 35,000 codes

Live data parameters: Over 250

Vehicle compatibility: US vehicles (from 1996), European vehicles (from 2000), Asian vehicles (from 2008)

Functions: Freeze Frame, Mode 6, Mode 8, I/M Readiness, battery voltage monitoring

Language support: Chinese, English, Korean, Japanese, Russian, Polish, Portuguese, Finnish, Italian, French, Spanish, Dutch, German

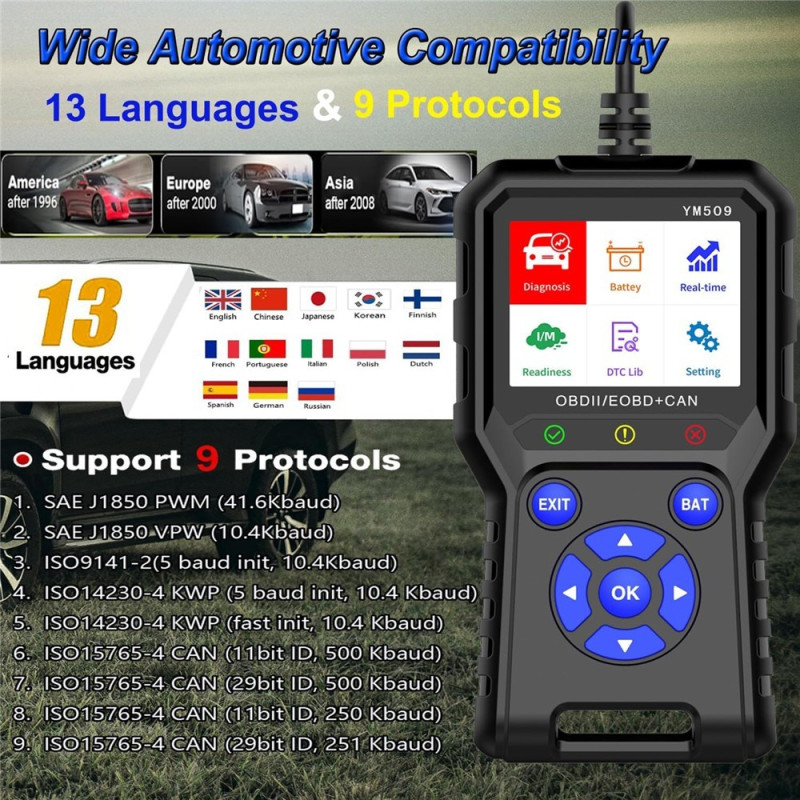

Protocol support:

SAE J1850 PWM (41.6 kbaud)

SAE J1850 VPW (10.4 kbaud)

ISO9141-2 (5 baud init, 10.4 kbaud)

ISO14230-4 KWP (5 baud init, 10.4 kbaud)

ISO14230-4 KWP (fast init, 10.4 kbaud)

ISO15765-4 CAN (11-bit ID, 500 kbaud)

ISO15765-4 CAN (29-bit ID, 500 kbaud)

ISO15765-4 CAN (11-bit ID, 250 kbaud)

ISO15765-4 CAN (29-bit ID, 250 kbaud)

The package contains

1 x Car diagnostic tool

1 x User manual in English
